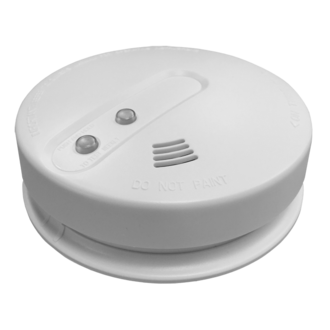

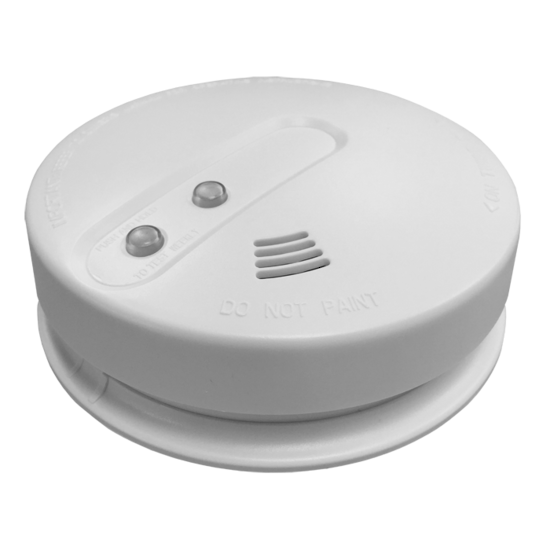

HM-SMOKE230
230V Hardwired Smoke Detector, Inter-Connectable, with Battery Back-Up
Product query
230V Hardwired Smoke Detector, Inter-Connectable, with 9V Battery Back-Up
Operating Voltage: AC 220-240V
Battery Backup: 9V
Alarm Volume: 85dB/3m
Alarm Indication: Sound and Red LED
Sensor: Infrared Photoelectric Sensor
Max Interconnect Devices: 40
Connection Distance: 200m
Alarm Reset: Auto
Operating Temp: -10℃ ~+ 50℃
Operating Humidity: ≤95%RH (no condensation)
Dimension: φ128 * 38.0 mm
Connectable to an Arrowhead Alarm Panel using the optional control module:
HM-CONTROLLER
Warranty: 2 Year Return to Base Warranty
Brochure
Instructions
