PSU1B SM
larger imageMove mouse over the image to magnify
01617

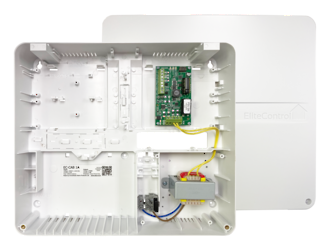

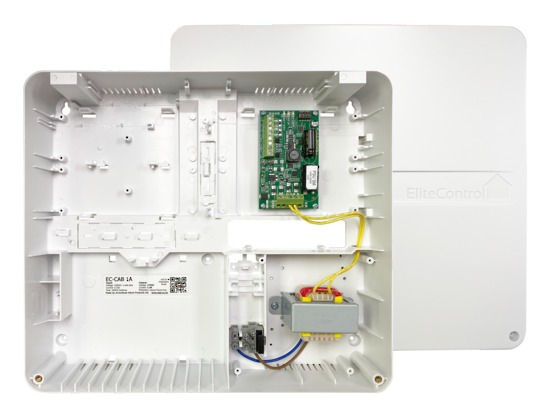

PSU1B SM

13.8V 1.5A Boxed Power Supply
Version 2: Plastic Cabinet
Specifications.
  Input voltage: 220-240VAC
  Output voltage: 13.8VDC
  Current: 1.5A
  Battery Charge: 250 or 500mA (selectable)
  Fused Outlets: 2 x 1.5A PTC auto reset fuses
  Monitor Outlets: 2 x NO or NC selectable Contacts (50mA 30VDC max.) for Battery Low & Mains fail
  Size: 323 x 293 x 80mm

Features.
  Dynamic Battery Monitoring
  Main fail detection with optional 15 minute delay
  Low voltage battery disconnect (10.5V)

imagesBrochure
imagesInstallation Paperwork




Version 1: Metal Cabinet (no longer available)
Specifications.
  Input voltage: 220-240VAC
  Output voltage: 13.8VDC
  Current: 1.5A
  Battery Charge: 250 or 500mA (selectable)
  Fused Outlets: 2 x 1.5A PTC auto reset fuses
  Monitor Outlets: 2 x NO or NC selectable Contacts (50mA 30VDC max.) for Battery Low & Mains fail
  Size: 260 x 310 x 80mm

Features.
  Dynamic Battery Monitoring
  Main fail detection with optional 15 minute delay
  Low voltage battery disconnect (10.5V)

imagesSpec Sheet (Metal Version)
