> PSU1 SM
larger image
Move mouse over the image to magnify
01616
https://www.aap.co.nz/shop/Power+Supplies/12+VDC/PSU1+SM.html

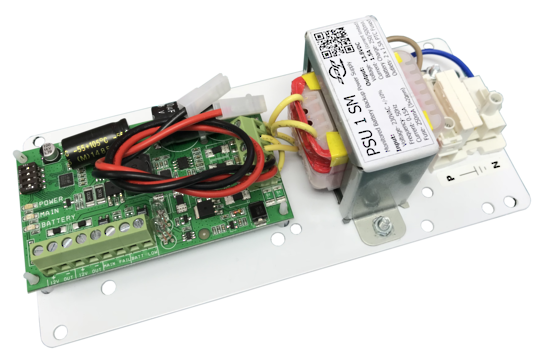

PSU1 SM
13.8V 1.5A Plated Power Supply
Product query
Specifications.
Input voltage: 220-240VAC
Output voltage: 13.8VDC
Current: 1.5A
Battery Charge: 250 or 500mA (selectable)
Fused Outlets: 2 x 1.5A PTC auto reset fuses
Monitor Outlets: 2 x NO or NC selectable Contacts (50mA 30VDC max.) for Battery Low & Mains fail
Size: 200 x 92 x 54mm
Features.
Dynamic Battery Monitoring
Main fail detection with optional 15 minute delay
Low voltage battery disconnect (10.5V)
Spec Sheet
