TRX MAINS

* Discontinued *

230VAC Wireless Control Module

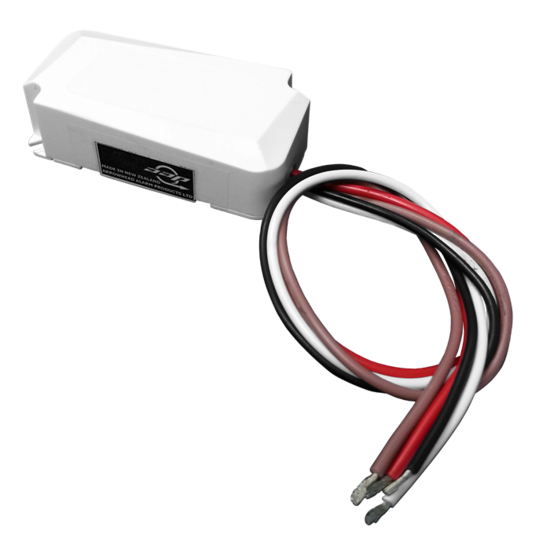

The TRX MAINs is a small 2-way wireless device that can be connected to lighting circuits, heated towel rails, water pumps and many other 230VAC devices. That device can then be controlled through your Elite S Control Panel, using the AAP smart phone app, wireless remote pendants, triggered zone inputs, automatic time zones, alarm activation's and alarm set/unset.

Requires:
- TRX TRANSCEIVER
- Elite S Controller (ESL-PCB, Elite S-Lite or Elite S-PCB)
- IR REMOTE-10 (optional Programming remote)

Specifications:
   Input AC 220-240V 50Hz
   Output 10A Resistive, 8A Inductive
   Wireless Range 50 meter from TRX TRANSCEIVER (in normal working conditions)
   Size 81mm x 39mm x 24mm
   Cable length 260mm (+/-30mm)


*WARNING THIS IS A 230V PRODUCT FOR INSTALLATION BY QUALIFIED PERSONS ONLY

Brochure
