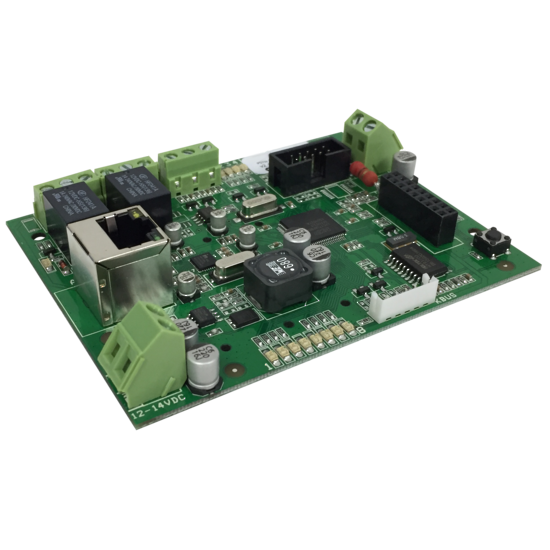

IP-MODULE

Universal PSTN to LAN Reporting Module for Monitoring Over Internet

Universal PSTN to LAN Reporting Module for Monitoring Over Internet

Note. For smart phone App with push notification features, this model has been replaced by the IoT-MODULE

The IP-Module by AAP is the only TCP/IP alarm interface you will ever need.

New Zealand designed and manufactured for the changing market.

It converts any Contact-ID signs for your older analogue dialer, into the newer internet reporting protocols.

Specifications:
- Operating voltage: 10-15 DC 300mA (battery backup is recommended)
- Reports in CSV-IP or Patriot LS30
- Programming is done through a web browser
- Dimensions: 102 x 80 x 20mm(plus connector)

Upgrades:
-USB D-Link
This will allow you to read the IP address that has been loaded into the IP-Module.
-IP LOOM
This will allow you to connect the IP-Module up to an Elite-S/S-Lite and control it over the internet.
