HM-MINI-12V
larger imageMove mouse over the image to magnify
01560

HM-MINI-12V

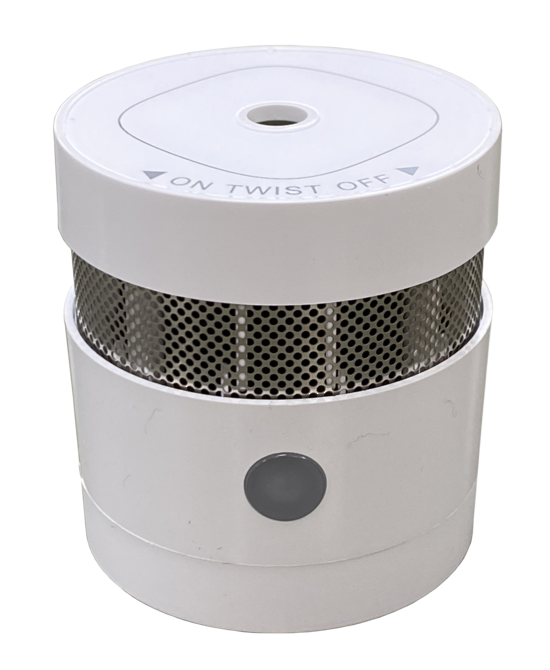

Wired Mini Smoke Detector 9-16VDC N/O & N/C Contacts
** DISCONTINUED **


Features
Hush button
Test Button

Specifications
Detector Type:   Photoelectric Chamber
Power Source:   9-16Volts DC
Standby Current:   5mA
Alarm Current:   25mA
Buzzer Output:   85db @ 3 meters
Output Relay:   N/O and N/C Contacts 50mA max. (2K2 EOL built-in)
Dimensions:   51mm x 45mm dia.(smoke) 64mm dia.(base)

pdfInstallation Paperwork
imagesBrochure
