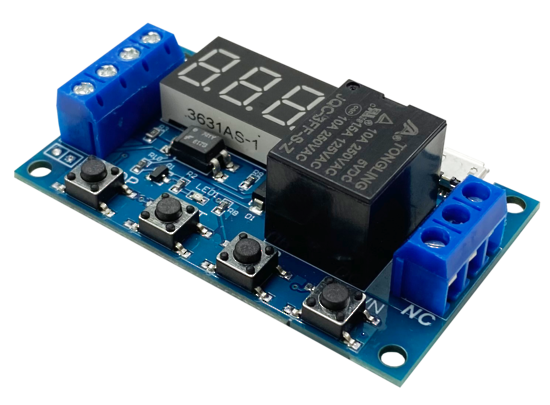

AT2-PCB

Universal timer board 5V -24V DC with multi timer function
Universal timer board 5V -24V DC with multi timer function


Specifications
  • Input Voltage: 5-24VDC
  • Trigger Voltage: 5-24VDC
  • Relay Contacts: 5-30VDC @ 5A
  • Standby Current: 20mA
  • Operating Current: 50mA
  • Time Increments: 0.1sec to 16.5 hours
  • Dimensions: 63 x 37 x 20mm
  • Operating Temp: -20 to 60 Degrees Celsius
  • Time Functions: 9 Selectable Modes
  • Mounting Holes: 3mm
  • Warranty: 2 Years, Return to Base


imagesManual
