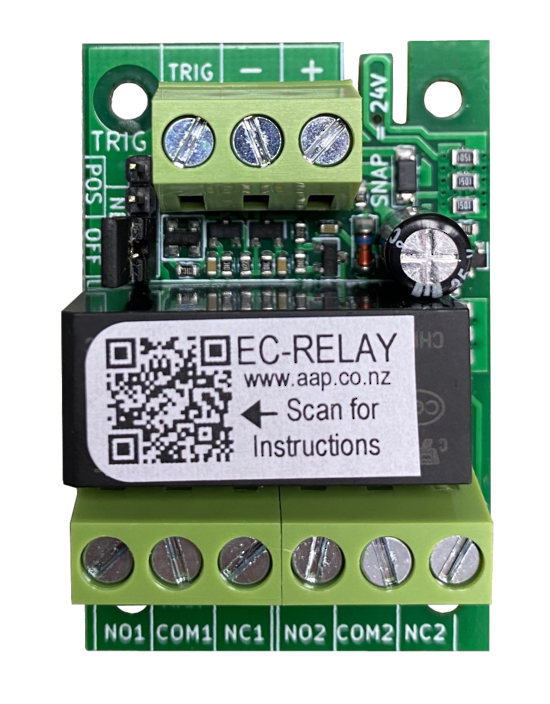

Coil 12V Mode. 9 to 20VDC 35mA / 11 to 16VAC Coil 24V Mode. 19 to 32VDC 45mA / 15 to 26VAC (see paperwork for selecting this mode) Contacts. DPDT 8Amp, 40VDC Max. (Normally Open and Normally Closed) Trigger Mode Negative. Current of >1mA required to activate Trigger Mode Positive. 2.0 to 30VDC, Current of >1mA required to activate Size. 35mm(w) x 52mm(h) x 20mm(d) Mounting Holes. 3mm x 4 (Use BSS-9 standoff) Indicator. Green LED On when coil is energized
Coil 12V Mode. 9 to 20VDC 35mA / 11 to 16VAC
Coil 24V Mode. 19 to 32VDC 45mA / 15 to 26VAC (see paperwork for selecting this mode)
Contacts. DPDT 8Amp, 40VDC Max. (Normally Open and Normally Closed)
Trigger Mode Negative. Current of >1mA required to activate
Trigger Mode Positive. 2.0 to 30VDC, Current of >1mA required to activate
Size. 35mm(w) x 52mm(h) x 20mm(d)
Mounting Holes. 3mm x 4 (Use BSS-9 standoff)
Indicator. Green LED On when coil is energized
