Infinity Motion

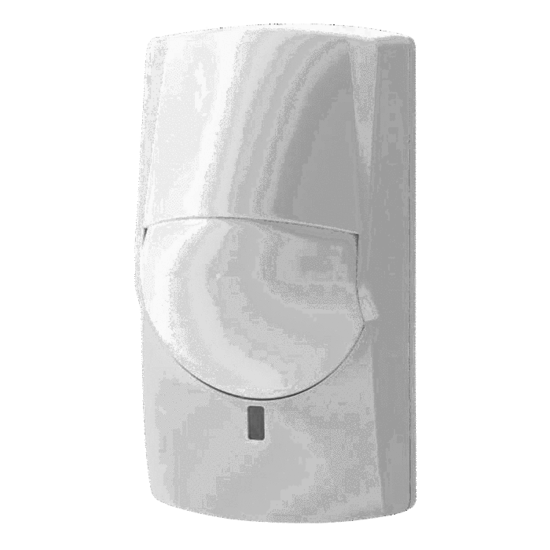

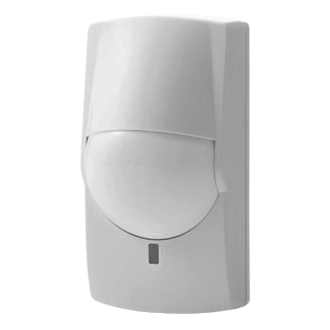

Wireless Optex PIR motion sensor 915Hz for ESL & ESX
Wireless Optex PIR motion sensor 915Hz for ESL & ESX

  • Detection Method: Passive Inrared
  • Coverage: 12m x 12m @ 85 Degrees
  • Mounting Height: 1.5 - 2.4m
  • Detection Zones: 78 Zones
  • Sensitivity: 1.6 deg.C @ 0.6m/sec
  • Detection Speed: 0.3m - 1.5m/sec
  • Pulse Count: Approx 20 sec (2 or 4)
  • Wireless Range: Up to 500m Line of Sight
  • Frequency: 915Mhz
  • Modulation: GFSK
  • Supervision: 7 minutes
  • Protocol: infinity 2 way encrypted (freelink)
  • LED Indicator: On/Off Selectable
  • Tamper Switch: Front Cover Tamper
  • Battery Type: 1 x CR123A lithium
  • Battery Life: Up to 5 Years
  • Battery Low voltage: 2.4 Volts
  • Operating Temperature: -20 to 50 Deg. C
  • Environment Humidity: 85% max
  • Dimensions: 115mm x 62mm x 50mm
  • Event Transmission: Alarm, Tamper, Low Battery & Supervision
Requires Infinity Link

Battery model:
CR-123AW

Works on systems: ESL, ESL-2, ESX, Elite-S, Elite-S Lite, Runner

pdfInstallation Paperwork
pdfBrochure
