Model: OPT-RLS-50100V [50 x 100 m]
Model: OPT-RLS-3060V [30 x 60 m]

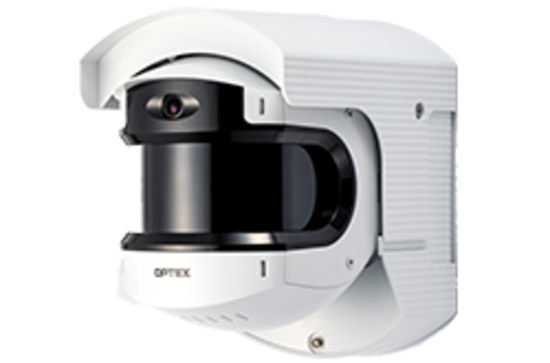

Part of the ONVIF profile S compliant REDSCAN Pro Series, RLS-50100V is the long-range LiDAR sensor providing very accurate detection of intruders and moving objects within a range of 50 m x 100 m, without any gaps and keeping the same detection resolution in the near and far. Equipped with OPTEX's most advanced technology it provides excellent detection performance not affected by variable lighting, temperature or environmental changes, making it the best solution for high security sites.
Achieve more with just one sensor
RLS-50100V provides 50 x 100 m, 190 degree detection allowing to protect wide areas, with just one sensor. The detection area can be divided in up to 8 independent zones, and for each of them the object target size, sensitivity and output can be customised. It gives great flexibility to adapt the settings depending on the zones location and level of threat. For instance one detection zone can be set to detect people, while another is set to detect vehicles, or one zones can be set as pre-warning and another as immediate security alert. The REDSCAN Pro's detection range and versality enables to achieve what is usually done by multiple sensors. In addition the sensor has a built-in camera which can record on the device, alarm events and save both logs and pre-post event photos and videos, to be used as additional support to review what triggered the alarm and make any adjustments necessary to the settings.
Intelligent and weather resistant device
With onboard analytics, REDSCAN Pro can analyse the size, the speed and the distance of the moving objects, providing point detection by tracking the X & Y coordinates of the moving objects. A further advantage of LiDAR technology is that the detection performance is stable at any time without being affected by variable lighting or temperature. RLS-50100V provides a high detection resolution of 0.125 degrees.
RLS-50100V features environmental resistance function to reduce false alarms due to harsh environments like fog or snow. An Auto Area Adjustment function allows REDSCAN Pro to continuously adjust the detection area to take into consideration changes happening on ground such as accumulation of snow or leaves. The sensor can operate from -20 to +60 degrees and when using a heated lens can extend its operating temperature to -40 degree.
Connectivity and interoperability
The RLS-50100V LiDAR is an ONVIF profile S compliant sensor allowing it to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices. The video stream of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To assure a secure network communication, the REDSCAN Pro is compliant with HTTPS, SNMPv3 protocols.
Easy installation and maintenance
REDSCAN Pro is equipped with built-in assistance camera which simplifies installation and walk test. Through a laser line overlay on the camera view, it provides a very useful visual guidance on where the detection area is on scene, allowing to adjust the angle of detection of the sensor. Additionally, the RLS-50100V features a built-in adjustment bracket within its housing to allow a tilt of -5 degree to 95 degree and a side adjustment is -/+ 5 degree. Horizontal, vertical and tilted mounting options can all be achieved without the need of an additional bracket.
The configuration settings is done via web browser which allows an easy remote access. The settings can be copied from one device to another, providing they are the same model (from one RLS-50100V to another RLS-50100V).
Vertical or horizontal mount is selectable
REDSCAN Pro series can be installed vertically, horizontally or at an angle up to 45º.
Selectable installation method
REDSCAN Pro series have 3 installation methods as Wall, Ceiling and Pole. You can select either method to match the installation site.
Eight independent detection zones
Different sensitivity only at small part like a door
A specific detection zone, such as a door or window can be set at a different sensitivity level.
Detection area generating an alarm signal immediately and the one generating a pre-warning signal.
Some detection zones can be set as pre-warning and others as immediate alarm.
Different sensitivity at left and right
The sensitivity can be adjusted to the assessed risk per zone: high sensitivity to detect a running person and medium for a climbing intruder for instance. FOR COMPLETE INFORMATION CLICK HERE
