OPT-RLS-3060V

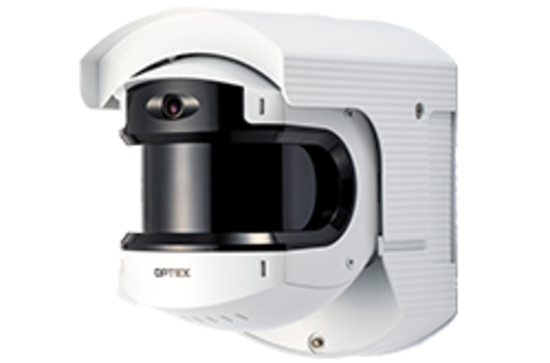

RLS-3060V Outdoor/Indoor LiDAR with camera, ONVIF-Profile S
Enquire
RLS-3060V Outdoor/Indoor LiDAR with camera, ONVIF-Profile S


Product Details

Part of the ONVIF profile S compliant REDSCAN Pro Series, RLS-3060V is the LiDAR sensor providing very accurate detection of intruders and moving objects within a range of 30 m x 60 m, without any gaps and keeping the same detection resolution in the near and far. Equipped with OPTEX's most advanced technology it provides excellent detection performance not affected by variable lighting, temperature or environmental changes, making it the best solution for high security sites.



Achieve more with just one sensor

RLS-3060V provides 30 x 60 m, 190 degree detection allowing to protect wide areas, with just one sensor. The detection area can be divided in up to 8 independent zones, and for each of them the object target size, sensitivity and output can be customised. It gives great flexibility to adapt the settings depending on the zones location and level of threat. For instance one detection zone can be set to detect people, while another is set to detect vehicles, or one zones can be set as pre-warning and another as immediate security alert.

The REDSCAN PRO's detection range and versality enables to achieve what is usually done by multiple sensors.

In addition the sensor has a built-in camera which can record on the device, alarm events and save both logs and pre-post event photos and videos, to be used as additional support to review what triggered the alarm and make any adjustments necessary to the settings.



Intelligent and weather resistant device

With onboard LiDAR analytics, REDSCAN Pro can analyse the size, the speed and the distance of the moving objects, providing point detection by tracking the X & Y coordinates of the moving objects. A further advantage of LiDAR technology is that the detection performance is stable at any time without being affected by light or temperature.

RLS-3060V features environmental resistance function to reduce false alarms due to harsh environments like fog or snow. An Auto Area Adjustment function allows REDSCAN Pro to continuously adjust the detection area to take into consideration changes happening on ground such as accumulation of snow or leaves. The sensor can operate from -20 to +60 degrees and when using a heated lens can extend its operating temperature to -40 degree.

Connectivity and interoperability

The RLS-3060V LiDAR is an ONVIF profile S compliant sensor allowing it to send alarm outputs via the ONVIF protocol to any ONVIF compliant networked video system or IP network devices. The video stream of the assistance camera could also be provided to the Video Management Software platform via the ONVIF RTSP protocol. To assure a secure network communication, the REDSCAN Pro is compliant with HTTPS, SNMPv3, IEEE802.1X protocols.

Easy installation and maintenance

REDSCAN Pro is equipped with built-in assistance camera which simplifies installation and walk test. Through a laser line overlay on the camera view, it provides a very useful visual guidance on where the detection area is on scene, allowing to adjust the angle of detection of the sensor. Additionally, the RLS-3060V features a built-in adjustment bracket within its housing to allow a tilt of -5 degree to 95 degree and a side adjustment is -/+ 5 degree.

Horizontal, vertical and tilted mounting options can all be achieved without the need of an additional bracket. The configuration settings is done via web browser which allows an easy remote access. The settings can be copied from one device to another, providing they are the same model (from one RLS-3060V to another RLS-3060V).

Applications

  • Buildings
  • Perimeter
  • Approach
  • Roof / Ceiling

Key Features

  • Analytics recognising moving object’s size, speed and distance from the unit
  • 30x60m, customisable vertical or horizontal detection
  • Built-in assistance camera, for easy installation and alarm event review
  • up to 8 independent zones with configurable sensitivity, target size and output

RLS-3060V Outdoor/Indoor LiDAR with camera, ONVIF-Profile S | Optex Europe (optex-europe.com)
