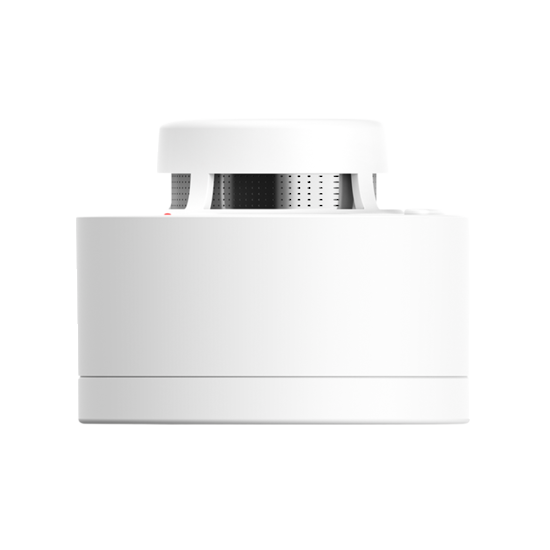

AHI-SMOKE

Wired Interconnect Photoelectric Smoke Detector with 10+ year backup battery (12-24VDC)

Compact by design, powerful by performance. At just 67mm in diameter and 53mm high, the AHI
detector delivers industry leading protection without compromising aesthetics. Engineered for
modern living and built to perform, AHI offers advanced fire protection through intelligent technology, uncompromising reliability, and the option of seamless EliteAlarm integration.

10-30V DC Powered. Flexible low voltage operation from a security alarm system or standalone power supply.
10 Year Rechargeable Backup. Sealed 3.7V rechargeable lithium battery delivers 10+ years of maintenance free backup protection. *Power required*
400 Hour Standby Backup. Provides up to 16 days of standby operation during power outages, far exceeding (AS3786:2023) Australian and New
Zealand standard requirements.
Standards. Designed to meet AS3786:2023 (AHI-SMOKE), AS1603.3:2018 (AHI-HEAT) and ISO8201 alarm signalling requirements.
Powerful Alarm Output. High-output audible alarm delivering ≥85dB at 3 metres for effective occupant notification.
Wired Interconnection. Connect up to 24 detectors. When one alarms, every interconnected detector activates simultaneously.
Find Feature. Following an alarm activation, press the Test button to make the last activated detector flash its LED.
Smart Hush Function. Temporarily silence nuisance alarms for approximately 7 minutes with a simple button press.
Test Mode. Quickly verify operation of individual or interconnected detectors with dedicated testing functions.
Surface or Flush Mount. Standard surface mount installation with an option of flush mount (AHI-FLUSH-RING) for a cleaner, architectural finish.
Remote Test & Hush Control. Optional wall plate (AHI-WALL-PLATE) provides convenient remote Test and Hush functionality without ceiling access.

Brochure and Spec Sheet

images-480-213

User Manuals

AHI-SMOKE
