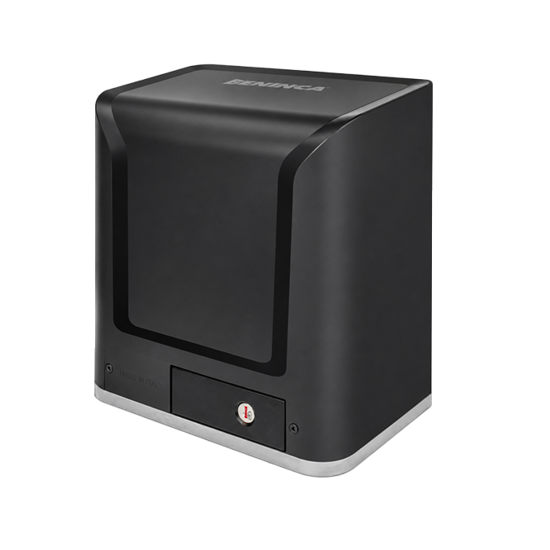

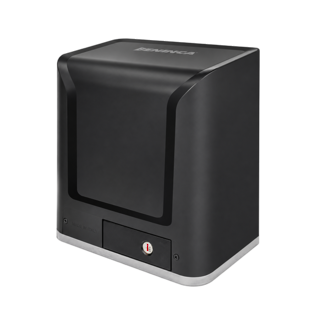

B-WOLF424

Residential Sliding Gate Motor. Suitable for gates up to 450kg on flat ground.


Residential use control unit with built-in receiver and virtual encoder
Built-in ESA+ system
Personalised release key
Magnetic limit switches
Up to 450 kg
IP44


24 Vdc | intensive use
• 24 Vdc Irreversible gear motor for intensive use with built-it control unit equipped with 115/230 Vac
switching power supply that allows a low consumption and a longer lifespan of the operator.
• Standby power consumption complies with European Regulation (EU) 2023/826.

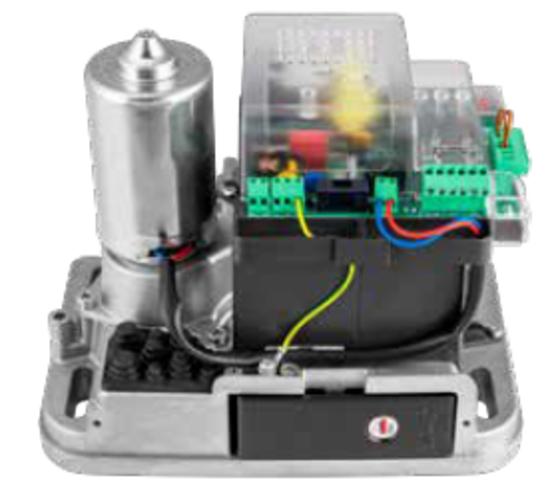

• The control unit, equipped with a display and located at the top of the motor, makes wiring operations easier.
• The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety.
• Anti-crushing system with amperometric obstacle detection.


Warranty: 2 Year Return to Base Warranty


 Brochure
