Residential use control unit with built-in receiver and virtual encoder
Built-in ESA+ system
Personalised release key
Magnetic limit switches
Up to 450 kg
IP44
24 Vdc | intensive use sliding gate motor
• 24 Vdc Irreversible gear motor for intensive use with built-it control unit equipped with 115/230 Vac
switching power supply that allows a low consumption and a longer lifespan of the operator.
• Standby power consumption complies with European Regulation (EU) 2023/826.
• The control unit, equipped with a display and located at the top of the motor, makes wiring operations easier.
• The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety.
• Anti-crushing system with amperometric obstacle detection.
* Battery backup kit sold separately. Code: B-BACK UP WOLF
+64 9 414 0085
+64 9 414 0085

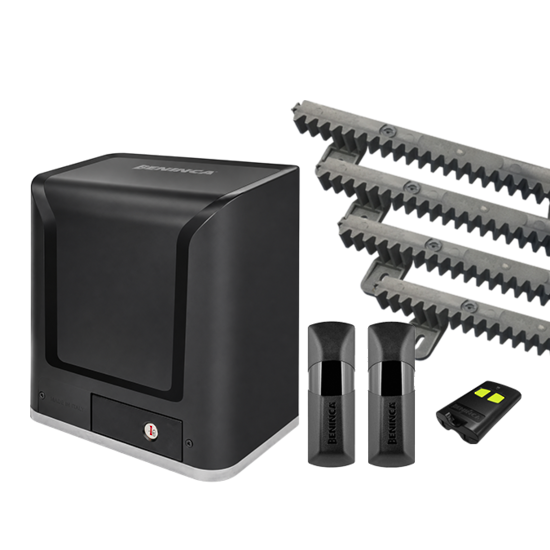

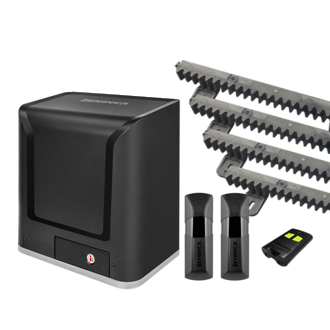

Kit Includes:
- Residential use control unit with built-in receiver and virtual encoder
- Built-in ESA+ system
- Personalised release key
- Magnetic limit switches
- Up to 450 kg
- IP44
24 Vdc | intensive use sliding gate motor• 24 Vdc Irreversible gear motor for intensive use with built-it control unit equipped with 115/230 Vac
switching power supply that allows a low consumption and a longer lifespan of the operator.
• Standby power consumption complies with European Regulation (EU) 2023/826.
• The control unit, equipped with a display and located at the top of the motor, makes wiring operations easier.
• The virtual encoder enables optimal management of slowing-down phases, movement tracking (STC system) and torque management in relation to the position of the gate, guaranteeing maximum safety.
• Anti-crushing system with amperometric obstacle detection.
* Battery backup kit sold separately. Code: B-BACK UP WOLF
Warranty: 2 Year Return to Base Warranty
