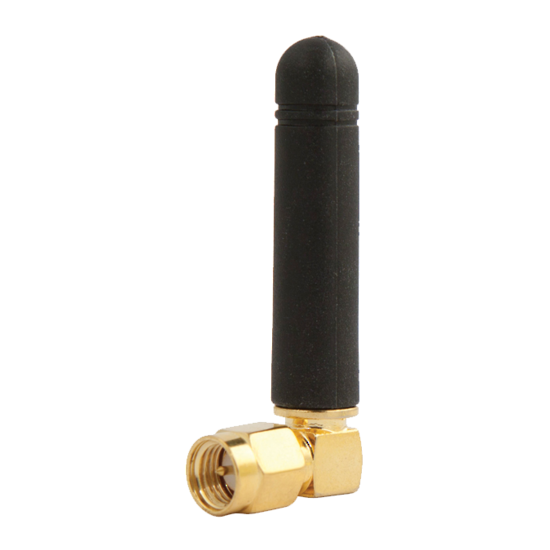

ANT-433MICRO
433MHz antenna with SMA connector
Product query
433MHz antenna with SMA connector
The 433Micro is one of our smallest 433MHz antennas. With an overall length of only 45mm, it makes this antenna suitable for places with limited space. Using a high quality SMA connector ensure that there are no losses with the connection.
Features
Tuned to the 433MHz band
SMA termination
Very short length at 45mm
Uses strong molded rubber
Electrical
Order Code (Model): 433Micro
Frequency: 433 to 435MHz
Tuned Bandwidth: 2MHz
Gain: 0 dBi
VSWR ( Return Loss): < 1.5 : 1 over 2MHz
Impedance: 50 Ohms
Maximum Power: 5 Watt
Radiated Pattern: Omni Directional
Mechanical
Construction: Moulded rubber
Length: 45 mm
Weight: 8 grams
Coaxial Length: No Coaxial Cable
Termination: SMA
Brochure
