01592

POE-16

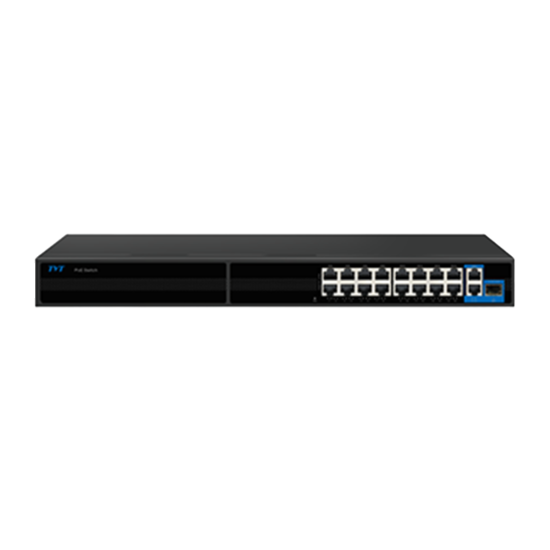

TVT 16 Port 10/100Mbps PoE Switch with 3 Gigabit Uplink Ports
TVT 16 Port 10/100Mbps PoE Switch with 3 Gigabit Uplink Ports


Features

  • 16x 10/100 Mbps PoE ports (RJ45)
  • 2x 10/100/1000 Mbps uplink ports (RJ45)
  • 1x 1000Mbps SFP fibre uplink port (data)
  • PoE Standard: IEEE 802.3af, IEEE 802.3at
  • Power output: PIN:1/2(+), 3/6(-)
  • Max Power: 30W per port
  • Max PoE Power Consumption: 250w
  • Transmission Distance: 100Mbps/10Mbps, Auto-Adaption 250m except the last two PoE ports
  • AI Watchdog Function
  • Auto-detect the data communication status of all PoE ports in real-time, and restart PoE IP camera timely if the camera is halted
  • Auto-Adaption 250m Transmission
  • Using the latest transmission technology, each port of the switch intelligently judges the transmission distance and automatically adapts 250m transmission, not including 1000M PoE ports
  • 6KV Lightning & 8KV ESD Protection
  • 1000Mbps RJ45 and SFP Uplink Ports
  • Dimensions: 440×180×45mm (1RU Rackmount. Rackmount Kit Included)
  • Manufacturers Code: TD-B2216S1-PGS


images Brochure
