WIFI-LR

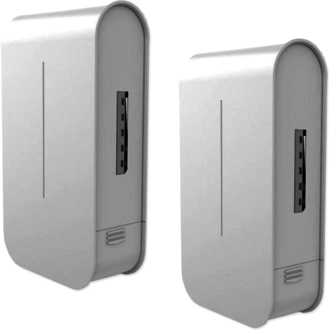

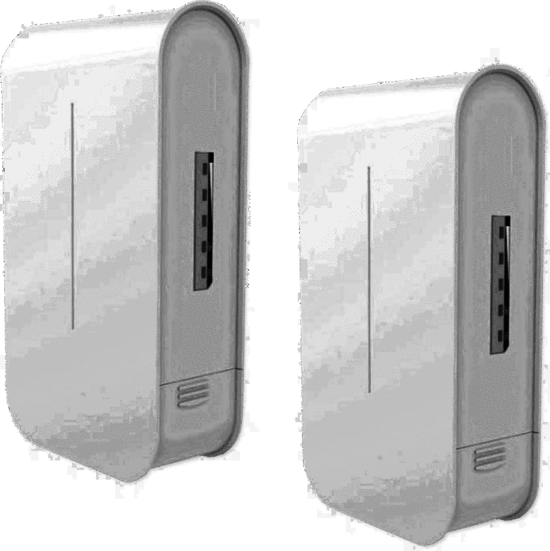

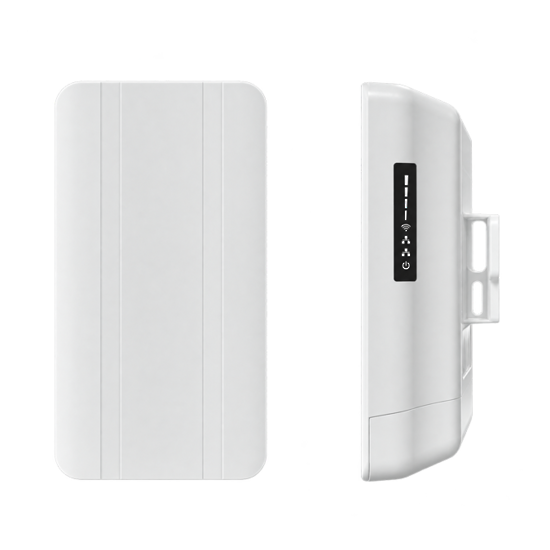

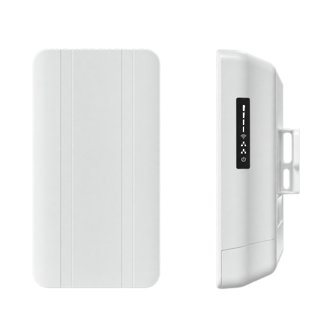

LONG RANGE OUTDOOR WIRELESS BRIDGE (Set of 2) Plug Packs Included

'Pre-paired' Master and Slave point to point Wi-Fi Bridge, Ideal for long range wireless connection of IP products on your network. Capable of transmitting up to 8x IP cameras wirelessly.

24vdc Passive PoE, must use the supplied power supplies or optional 12vdc power supply.

Features

• Frequency: 2.4GHz 802.11b/g/n
• Transmission Rate: 300Mbps
• Max Transmission Range: Up to 1km max, line of sight required
• Ethernet Port: 2*10/100Mbps LAN ports
• Antenna: Built in directional dual polarised antenna, 8dBi gain
• Power consumption: <3W standby, <5W full load

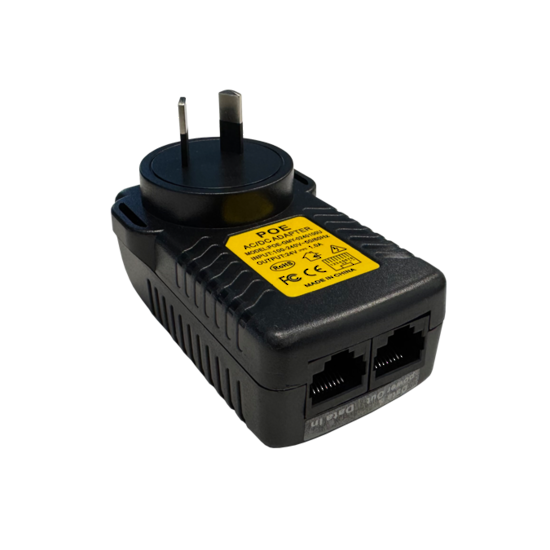

• Power Supply: Passive 24vdc PoE Power Supply included, x2. Or 12vdc (not included)
• IP Rating: IP65
• Operating Temp: -10~55°C, 10%~90% RH non-condensing
• Dimensions: 153*78*50mm
• Reset Switch: Yes. Press and hold for 20seconds and release to restore factory settings (This will unpair the units from each other)
• Warranty: 2 years, Return To Base

 Wiring Diagram
