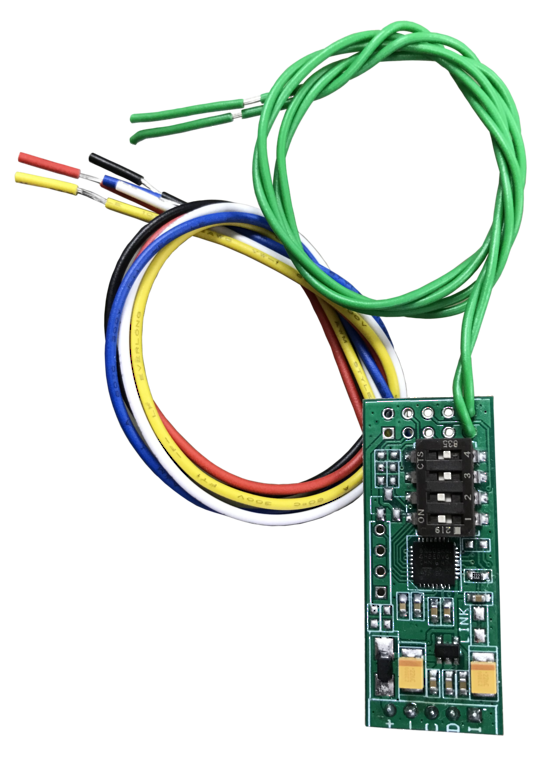

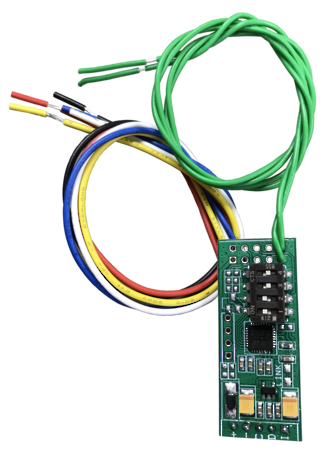

NANO-O1

Mini Single Output Expander that wires directly onto keypad bus of ESL only

This handy device is idea for controlling garage doors and gate controllers.
It wires on to the keypad bus of an ESL (pos, neg, clk & dat)
The single output can be mapped to any of the ESL systems outputs (1-8)

    Specifications:

• Compatible with: ESL, Elite-S, Elite S-Lite (Not ESX or EC/EC-i)
• Power: 9-16VDC, 15mA
• Size:   43 x 16.5 x 10mm
• Outputs: 1, Clean NO contacts (30VDC 100mA max) Can be assigned to follow any output 1 to 8
• Inputs: 1, Can be setup as a Tamper, Keyswitch, or Output control
• Communication Protocol: Freelink (supervised)
• Cable Run: 100m Max. (on 0.2mm 4-Core)
