ARR14

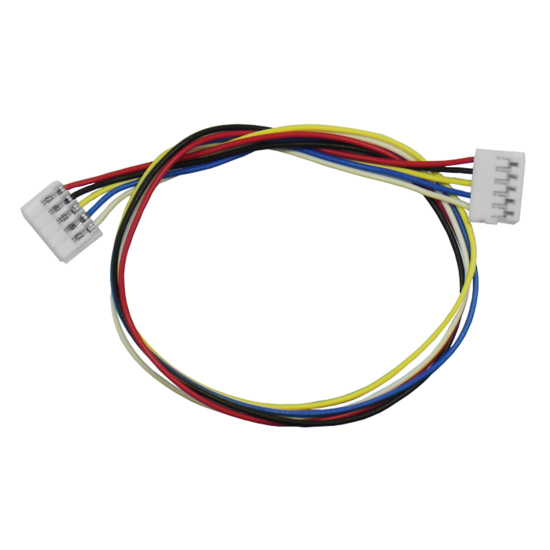

300mm Keypad Bus Connection Cable
Product query
300mm Keypad Bus Connection Cable
This cable is designed specifically for the Elite range of keypad bus devices.
5-wire connection:
Red = +12VDC
Black = -0VDC
Yellow = CLOCK
Blue = DATA
White = AUX
This cable can be used to connect an IP-Module or a RX-16 to Elite Systems
A 1500mm Cable is also available; Code: ARR-15
