Home > Alarm Systems > Cellular > ANT-MB-49A
ANT-MB-49A
larger imageMove mouse over the image to magnify
01973

ANT-MB-49A

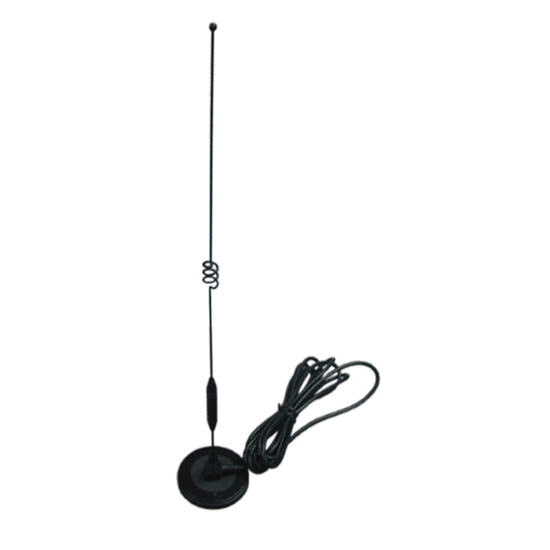

510mm, 6dBi, Whip Antenna Magnetic Base, 3m Cable SMA Connector
510mm, 6dBi, Whip Antenna Magnetic Base, 3m Cable SMA Connector


Electrical:

  • Type: Magnetic mount whip antenna
  • Frequency: 800-960/1710-2170/2300-2700MHz
  • VSWR: ≤2.0
  • Impedance: 50ohms
  • Gain: 6dBi
  • Radiation: Omni-directional
  • Polarization: Vertical
  • Max Power: 50W

Mechanical:

  • Antenna Size: base 80mm, height: 510mm
  • Operating temp.: -30 to +70 degree
  • Storage temp.: -35 to +75 degree

Mounting

  • Magnetic Base OD80mm
  • Metal Ground Plane to get better gain
