WiFi KIT EXT

Extended Range 2.4G WiFi Kit for EC-i systems

Extended Range 2.4G Wi-Fi Kit for EC-i systems

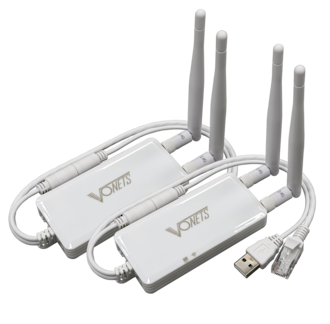

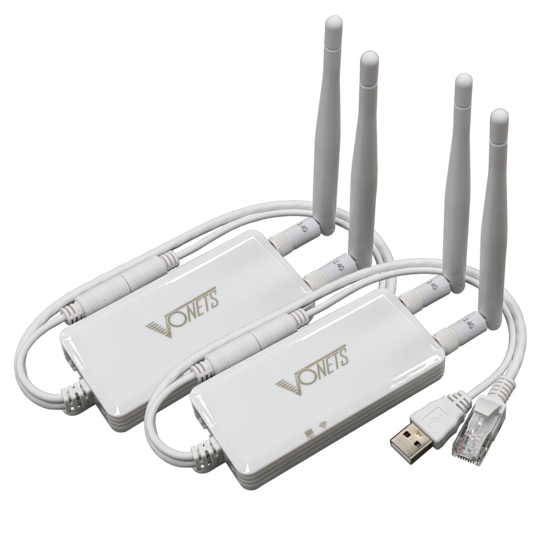

Pre-Programmed Wi-Fi Bridge Kit with extended range antenna

Includes:

1 x Master & 1 x Slave module
Simply plug the master into the router, the slave into the IP-Module and connect the power for a secure wireless path
The Master powers off the Routers USB port (stand alone 5-12VDC Plug pack required if router has no USB port)
The Slave is powered off the Alarm panels 12VDC outlets
Supports 802.11b/g/n Wi-Fi transmission protocol
Range of around 50m (through 2 walls). Normal Wi-Fi limitations apply.
Working environment temperature: -20 °C to 55 °C
94mm x 45mm x 15mm（L x W x H）or 240mm long including foldable antenna
2 year return to base warranty
