ONE-DB1260
larger imageMove mouse over the image to magnify
02355

ONE-DB1260

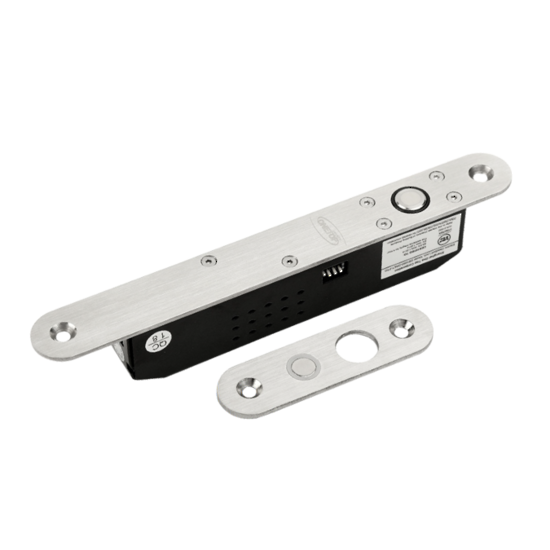

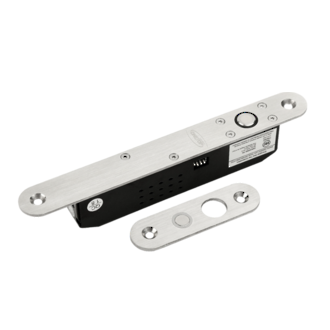

Slimline 12–24VDC drop bolt for narrow swing doors, 800kg holding force and bolt position sensing
Slimline 12–24VDC drop bolt for narrow swing doors, 800kg holding force and bolt position sensing

Features:
  • Slimline design for narrow door frames
  • 800kg holding force
  • Indoor use only
  • Auto sensing 12-24VDC input
  • Power to lock or Power to Open options
  • Over 1million operating cycles
  • Adjustable locking delay
  • Remote release input
  • Door status monitoring
  • Bolt position sensing and retract protection
  • Built in surge protection
  • Warranty: 2 year return to base


images-480-213 BROCHURE
