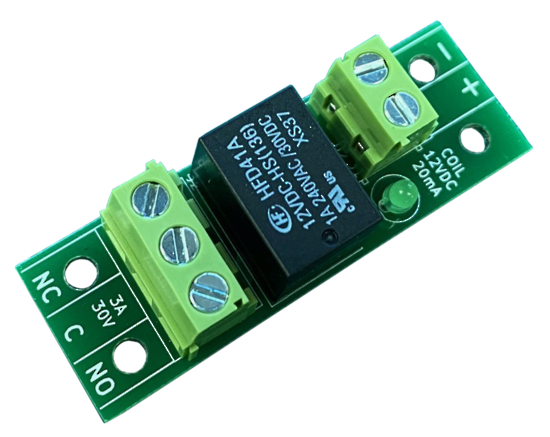

SP RELAY-1A
12V 3A Relay Board
Product query
12V 3A Relay Board
Specifications:
Coil - 9 to 14VDC, 20mA
Contacts - SPDT 3Amp, 30VDC Max. (Normally Open and Normally Closed)
Size -17.3mm(w) x 52mm(h) x 16mm(d)
Mounting Holes - 3mm x 4 (Use BSS-9 standoff)
Indicator - Green LED On when coil is energized

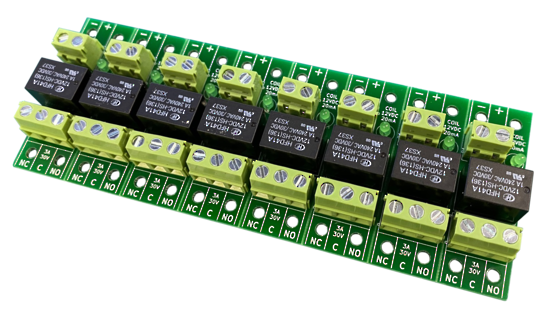

Available in easy break off strips of 8
